144 Cores Loose Tube SZ Stranding Line For Stranded Aerial Fiber Optic Cable





The line is used for SZ stranding of loose tube elements Ф1.8-Ф3.0mm .The following cable need this SZ stranding line.

144 Cores Loose Tube SZ Stranding Line For Stranded Aerial Fiber Optic Cable 0

A. Pay-off is the motorized take-up device, the tension of the pay-off is stable and reliable, and the maximum number of loose tubes can reach 12.

B. SZ stranding is full differential structure and the stranding pitch is stable.

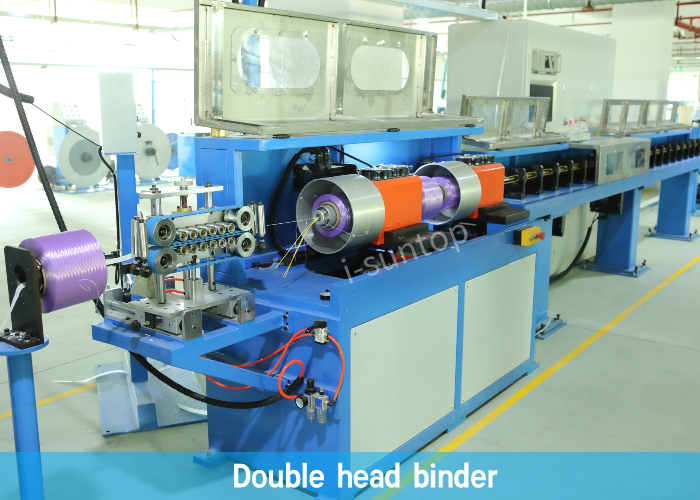

C. The tying yarn adopts the double-head single-point two-way cross-twisting method, and the yarn tension is controlled by segmentation, which is stable and reliable.

D. The production line has sound and light alarms such as tension overrun, release line breakage, and water blocking belt breakage.

E,International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.

F. The main control systems and components adopt international famous brands, and the production line has high stability and reliability.


structure speed Max.80m/min

Strength member

Ф1mm~Ф12mm

Max.cable diameter after stranding

Ф20mm

No of loose tube pay-off bobbins 12
Specification of loose tube pay-off reels PN630-800mm

SZ stranding pitch

50mm-800mm

SZ reverse angle

max: 1800rpm

The maximum speed of binder heads

 max: 4000rpm

Binder pitch

20mm-500mm

Additional loss

≤ 0.02db / km (sm fiber)

Power supply requirements

48KW, AC380V ±10% 50HZ three-phase five-wire


Items Qty.

800-1250mm portal type pay off

1set

Φ800 tension device

1set

Φ630-800mm loose tube Pay-off

12sets

Jelly filling device

1set

Cable cores collecting dunit

1set

SZ oscillator for twist

1set

Dual wheel concentric cross-binder

1set

passive type double shaft Water blocking tape pay-off

1set

Single wheel concentric cross-binder

1set

800 double wheel traction

1set

800 tension unit

     1set

800-1400mm take up and traverse machine ( ground gantry type )

     1set

IPC+PLC control panel

     1set
