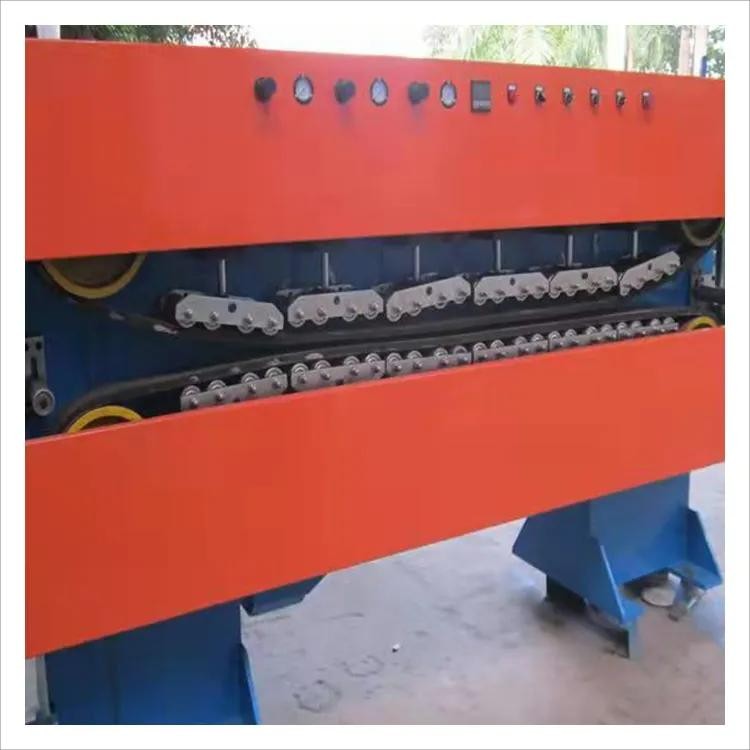

Caterpillar type capstan machine/cable pull machine

Pneumatic Capstan Wire & Cable Haul-off machine, Haul Off Machine/ CCV LINE FOR XLPE CABLE, Optical fiber cable production equipment Caterpillar Traction

Model	Type 200	Type 300	Type 500	Type 800	Type 1250	Type 1600	Type 2000	Type 2500	Type 3200	Type 4000	Type 5000
Cable through the outer diameter(mm)	2-20	5-25	5-40	8-60	10-80	15-100	20-120	20-130	25-150	30-180	50-200
Max traction force(KG)	200	300	500	800	1250	1600	2000	2500	3200	4000	5000
Pulling speed(m/min)	150	150	100	100	80	80	60	60	45	40	30
Track contact length(mm)	520	620	750	1200	1500	1900	2100	2400	2700	2900	3250
Track width	70	70	80	100	120	120	135	140	145	165	165
Number of cylinder(pair)	3	3	3	5	5	6	7	8	9	9	10
Overall dimension (L*W*H)	1450x720x1500	1500x720x1500	1800x1000x1600	2500x1150x1650	2750x1150x1700	3100x1150x1700	3450x1200x1750	3800x1200x1750	4500x1280x1820	4600x1300x1900	5000x1350x1950
