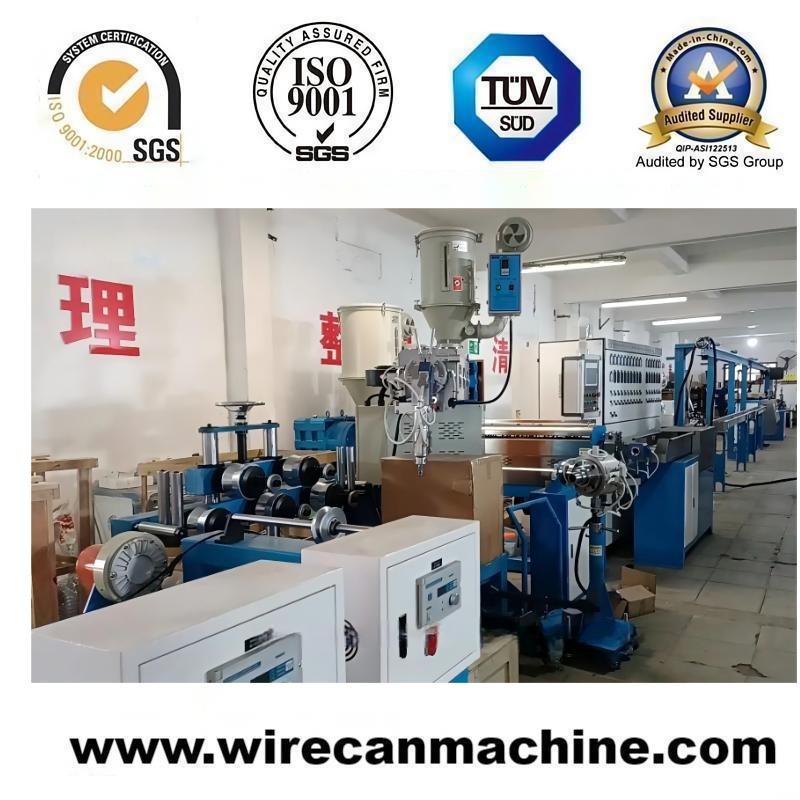

Double Layer PVC Cable Extrusion Line




It is mainly used to be produced for all kinds of double layer,double color nylon sheath and low smoke halogen free wire and cable.The double layer co-extrusion can be carried out quickly and at the same time,so as to save the cost and improve the production efficiency.The working speed of each single machine is flexible and reliable,and the whole line is linked to production to ensure the high efficiency of production.



Machine model

Φ70+Φ40

Φ90+Φ80

Φ120+Φ90

Screw diameter(mm)

Φ70mm,Φ40mm

Φ90mm,Φ80mm

Φ120mm,Φ90mm

L/D ratio

26:1

26:1

26:1

Pay-off type

Shaft free type/Double shaft typeΦ400~Φ630

Shaft free type/Double shaft typeΦ400~Φ630

Shaft free type/Double shaft typeΦ400~Φ630

Extrusion capacity(kg/h)

150kg/h;50kg/h

250kg/h;150kg/h

350kg/h;200kg/h

Main power(HP)

40HP;15HP

60HP;40HP

90HP;60HP

Extruded diameter(mm)

Φ2-Φ8

Φ5-Φ30

Φ8-Φ50

Line speed(m/min)

MAX.400m/min

MAX.300m/min

MAX.200m/min

Cooling system

U type stainless steel

Capstan power

5HP

10HP

15HP

Take up type

Double-axis type

No-axis type

Side axis type




Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes

1)Correct operating mode

2)Correct maintenance way

3)Remove simple problem of our product

Since the shipment date, our company freely assuring period of after-sale maintenance service is:

1)1year for mechanical part

2)6 month for electrical part
