UTP/FTP/SFTP Lan Cable Twisting machine

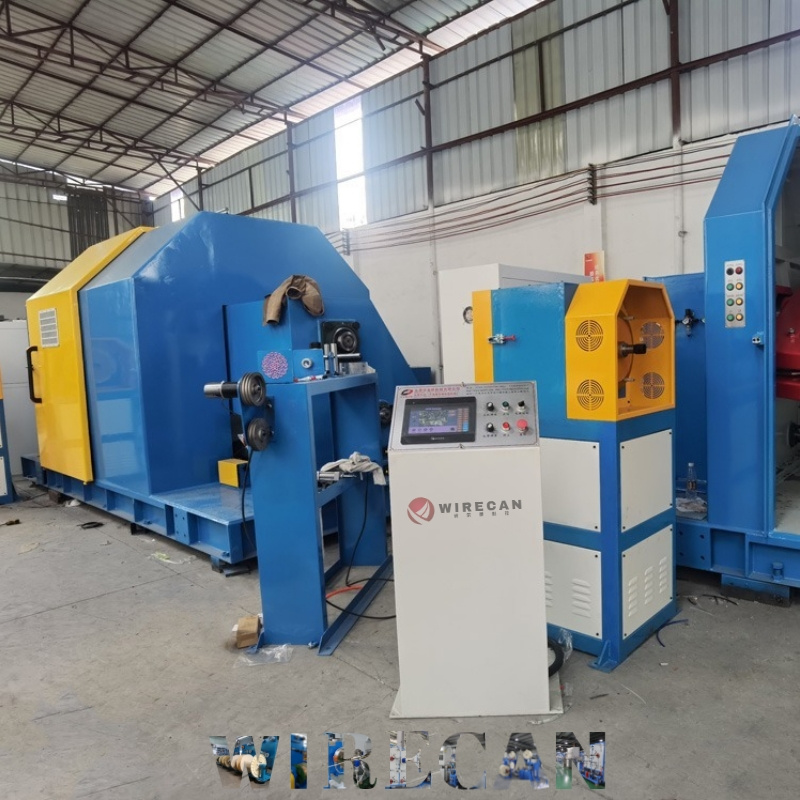

Cantilever type single cable stranding machine applied in the laying-up and stranding of power wire,telecommunications cable,control cable, CAT-5, CAT-6, CAT-7 date cable and other special core-wire,also can synchronously complete center wrapping or side wrapping.


    • High rotate speed, main shaft is lubricated by thin oil, cool warning if oil not enough, which can lower the temperature and the noise, extend the life of the machine.

    • The wire goes from bow belt to idler pulley of main shaft directly, which can reduce scratch and keep round cross section.

    • Magnetic powder clutch auto track and control taking up tension, making the tension of take up steadily.

    • High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.

    • Change guide wheel to change lay distance, easy to operate.

    • Use synchronous belt drive,

Φ630-Φ1250 Cantilever Single Twisting Machine
Machine model
Φ630
Φ800
Φ1000
Φ1250
Purpose
It is used in high-frequence wire,data wire,electrical core wire and kinds of group stranding
Core wire specification
Φ1.0-Φ4.0
Φ1.5-Φ6.0
Φ2.5-Φ8.0
Φ3.0-Φ10.0
Twisted out dia.(mm)
Φ3.0-Φ10.0
Φ3.0-Φ14.0
Φ3.0-Φ20.0
Φ3.0-Φ25.0
Pitch scope
Touch screen set the lay:20-250mm,controled by PLC,when accelaration and deceleration the lay can be keep costant
Max. RPM
MAX800RPM
MAX600RPM
MAX500RPM
MAX450RPM
Power
10HP Motor+Differential 15HP Motor+Differential 20HP Motor+Differential
Taping type

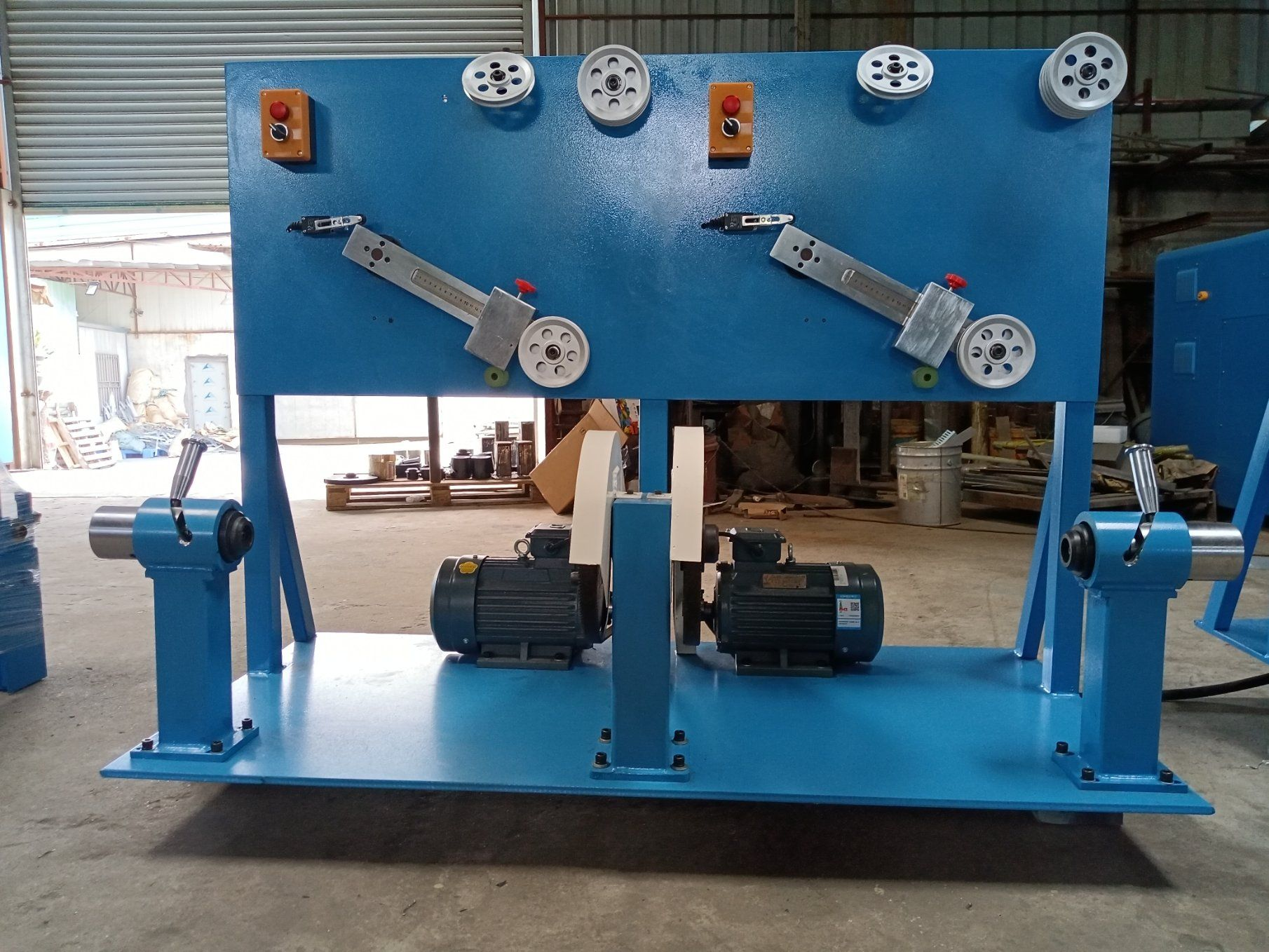

Single head horizontal type high-speed
center taping machine+Double heads side taping machine
Taping tension
Constant tension electromagnetism brake wheel/Automatic trace tension instrument,tapping tension keep constant from start to end
Take-up tension
Tracing the electrical tension automatic,take-up tension keep constant from start to end
Traversing style
Traversing wire by  moving shaft,it's to avert the wire hearted in this process,the size of arrange can set by wire specification
