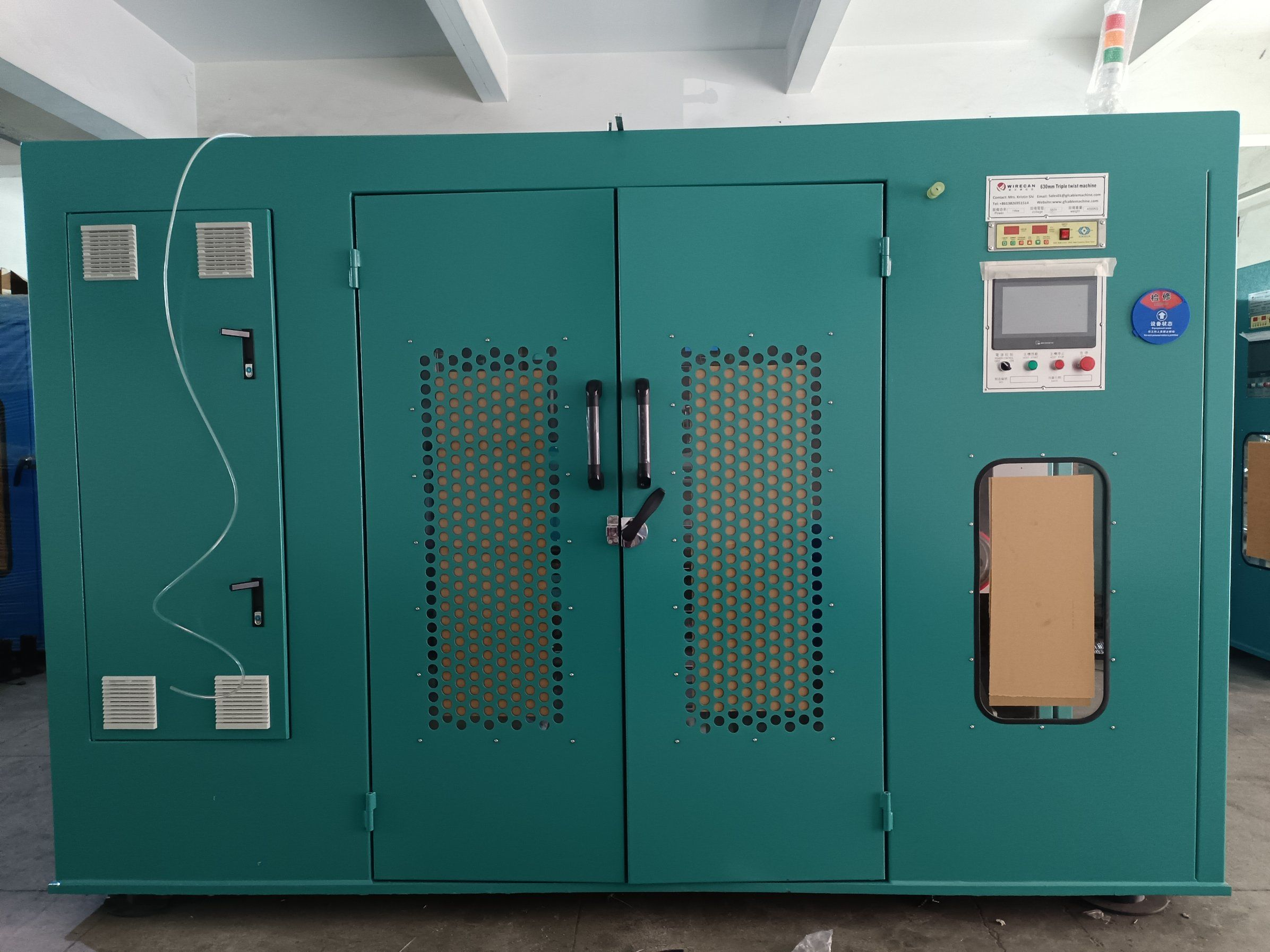

630mm Triple Twisting Machine For CAT6 Lan Cable

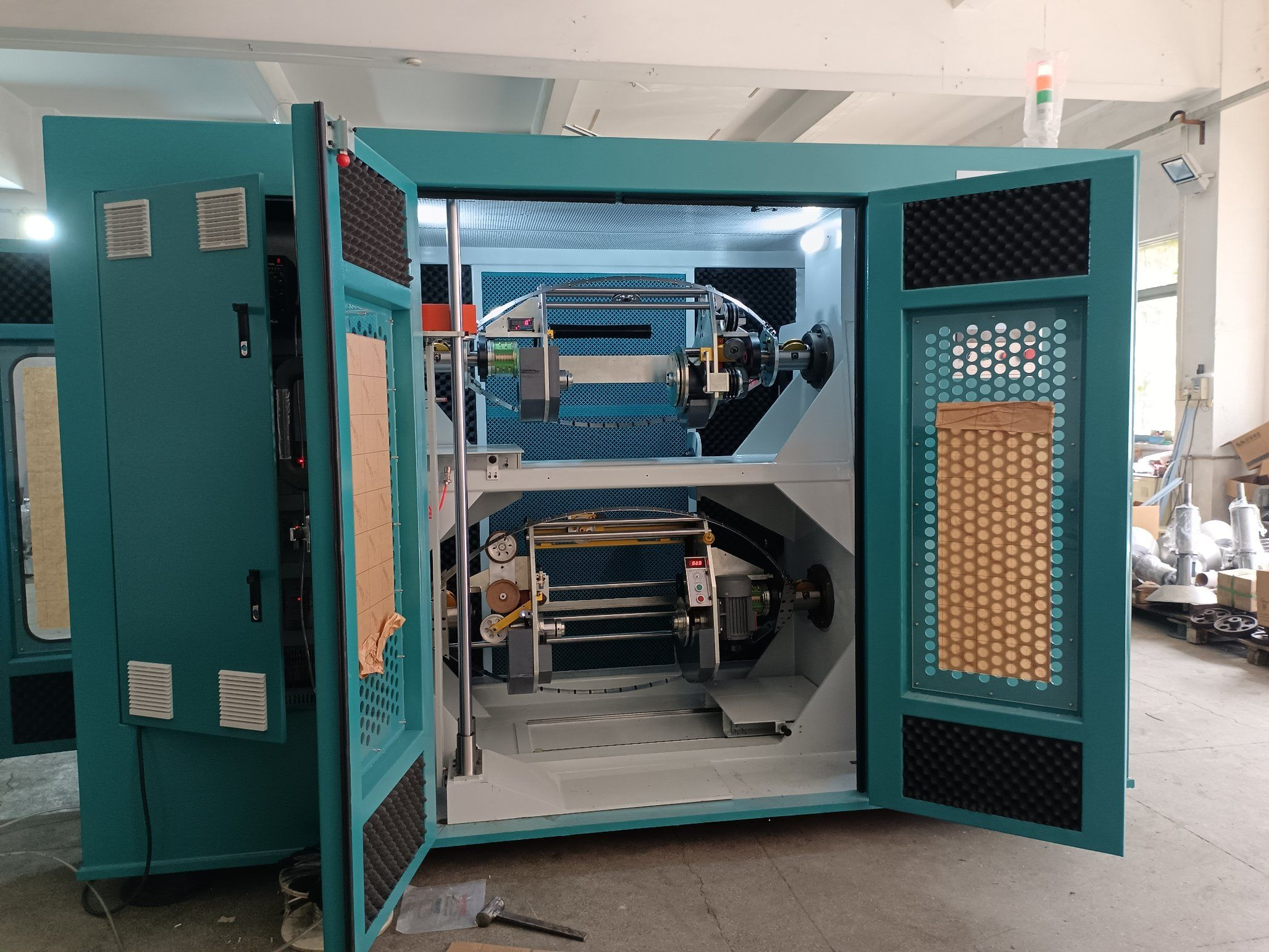

Suitable for LAN CABLE CAT5,CATE5,CAT6,CAT7,CAT8 CABLE signal wire twisted pair, The unique upper and lower structure design.



  • Application: suitable for pair-twist cat5,cat6, cat7 insulation core wire.
  • Machine feature: suitable for pair-wire LAN CABLE cat5,cat6,cat7 insulation core wire. Can set back-twist ratio during 0-100% according to wire requirement, make wire reach cat5, cat6, cat7 standard, and can increase efficiency by 50% compared with traditional back-twist machine.

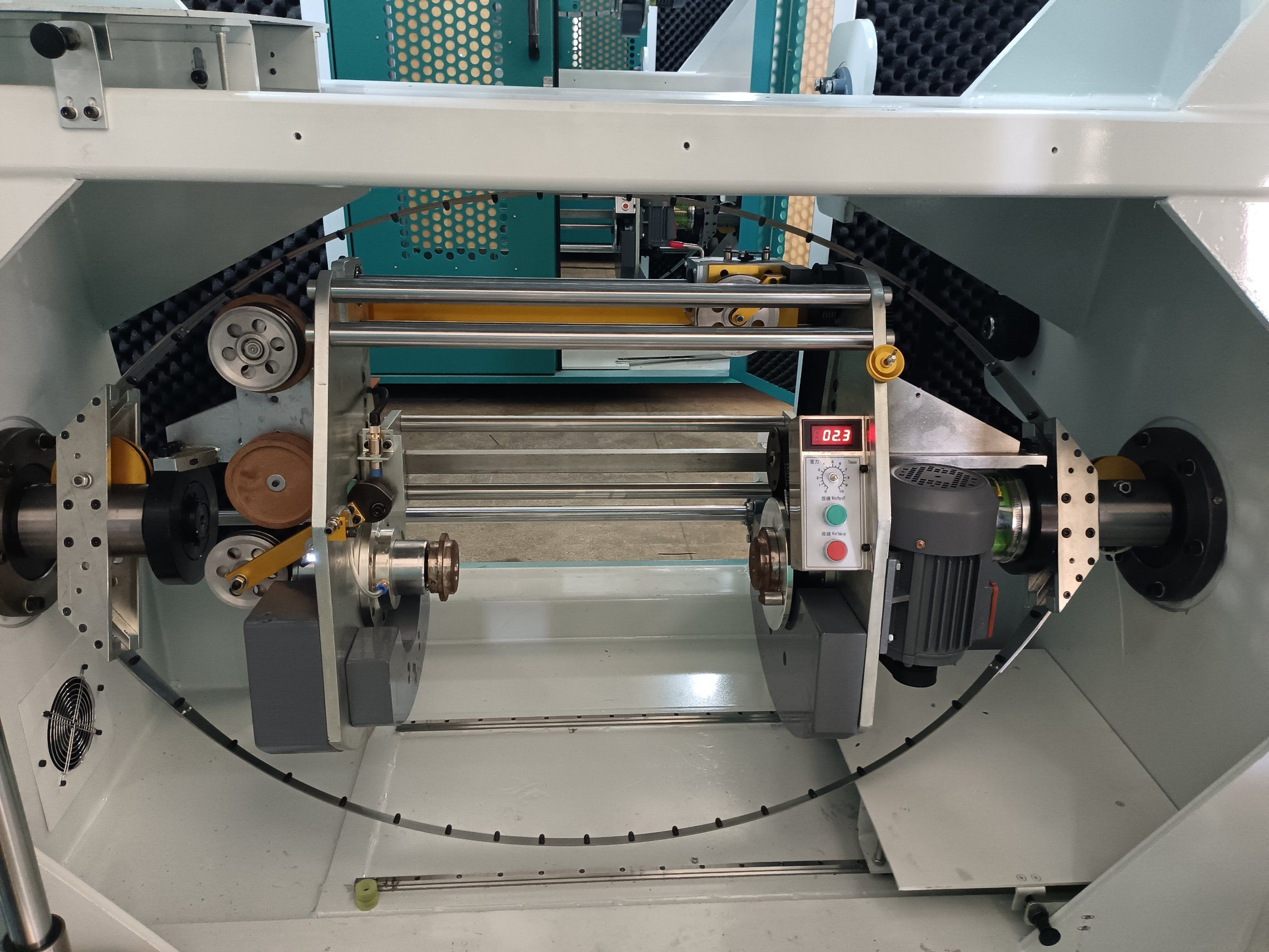

  • Triple pitches design , 1.5 times speed to traditional double twisting machine when with 33% backtwisting rate ,Twist pitch controlled via servo motor , user friendly HMI control , full programmable accuracy within ± 2%,Active take up , tension stable from empty to full reel



Machine model

GF-500/630

Max rotation speed

MAX1800RPM

Core wire

Φ0.8-φ1.7mm

Stranded dia.

Φ1.6-3.5mm

Twist range

5 ~ 50mm

Twist tolerance

±2%

Twist setting

Servo electronic twist, touch screen set

Back twist rate

00 ~ 98%

Stranding direction

S/Z

Tension range

Tension range 0.6-3kg, induction digital tension device, and wire tension slide type dynamic tension

Take-up&pay off

Take up bobbin diameter 500/630, bow motor10HP motor with frequency converter, motor winding 1/2HP gear motor drive with frequency control
