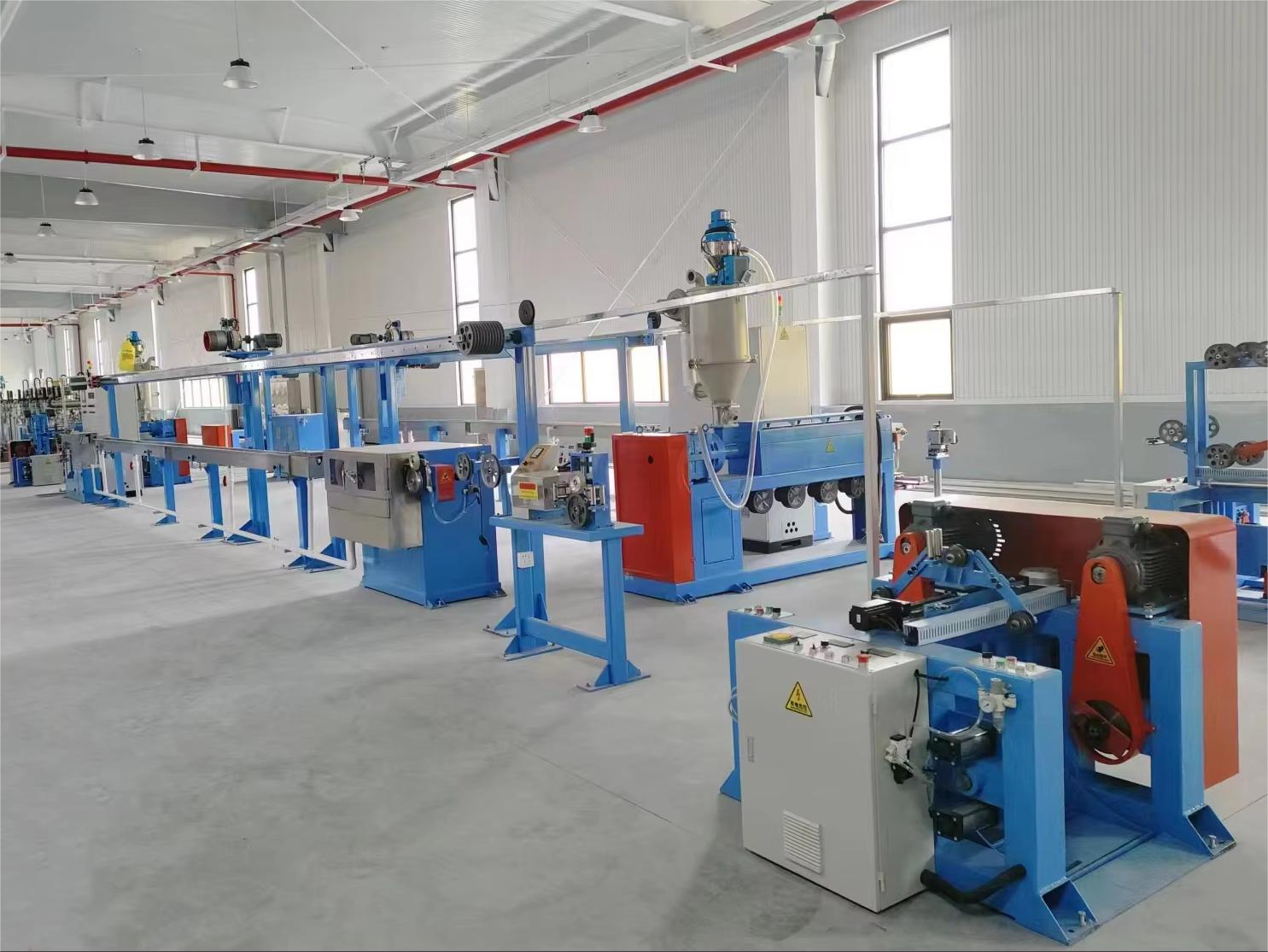

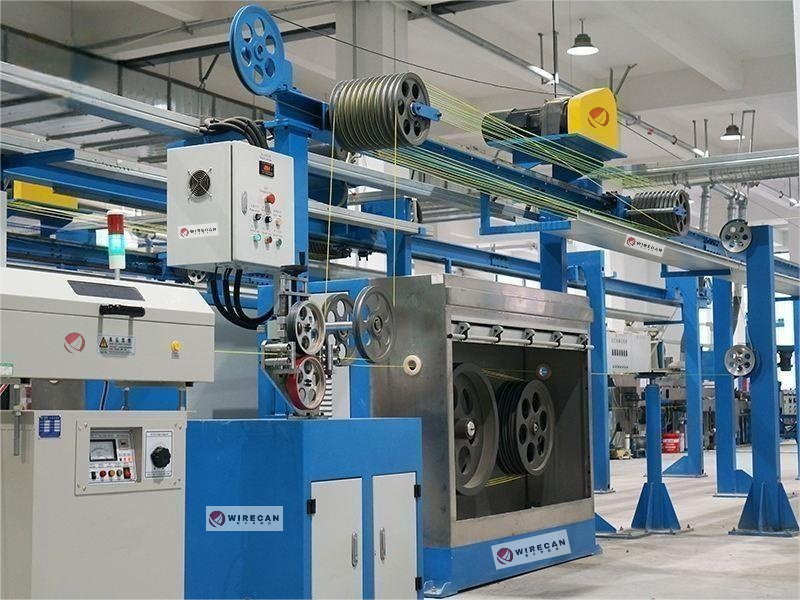

UL2488 Computer Flat Cable Extrusion Line




Specializes in producing computer flat wire such as UL2488,2651,2678.

Features:
Automatic self-centered machine head;Specialized accumulator;Taiwan technology;Higher wire speed Uniform thickness; Strong adherence;Constant tention;he number of disconnections and the rejection rate are significantly reduced, etc., which is the first choice for the cable manufacturer.



Machine type

60

70

80

Screw diameter(mm)

Φ60

Φ70

Φ80

Screw information

L/D-26:1(10-100rpm)

L/D-26:1(10-80rpm)

L/D-26:1(10-70rpm)

Extrusion capacity

80KG/H

140KG/H

200KG/H

Line speed(MAX)

200m/min

150m/min

150m/min

Pay off bobbin

≤Φ300mm

≤Φ300mm

≤Φ300mm

Extruder motor

25HP motor controlled inverter

30HP motor controlled inverter

40 HP motor controlled inverter

Combined number

1-20

1-32

5-60

Capstan power

4KW

4KW

5.5KW

Take-up motor

2.2KW

2.2KW

4KW





Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes

1)Correct operating mode

2)Correct maintenance way

3)Remove simple problem of our product

Since the shipment date, our company freely assuring period of after-sale maintenance service is:

1)1year for mechanical part

2)6 month for electrical part
