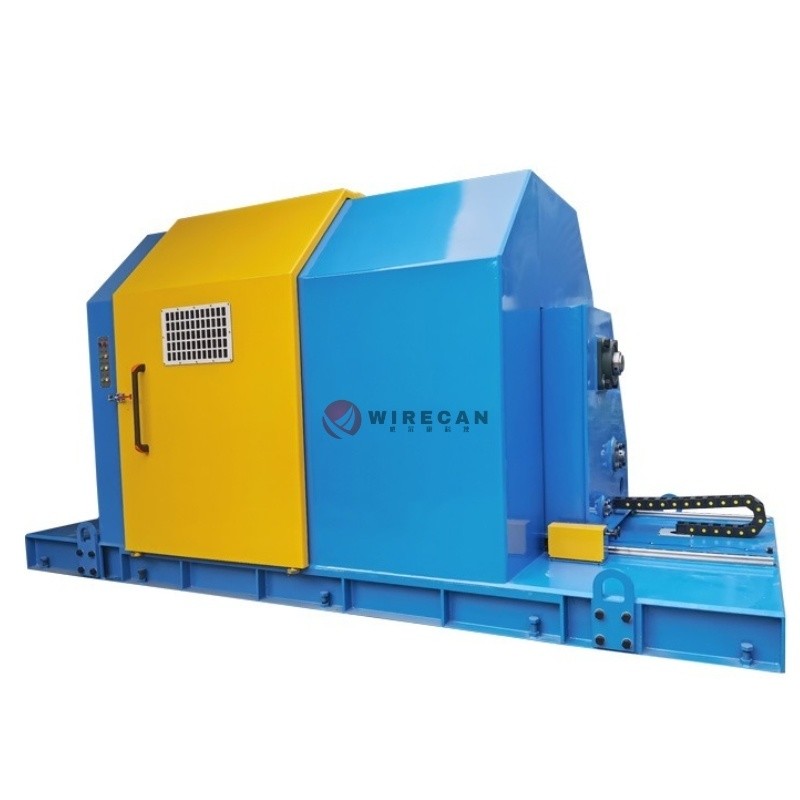

400/500 USB Wire Horizontal Cantilever Single Twisting Machine




HDMI,DP,USB,CAT-7 and so on high frequence cable,data cable,electrical core wire and many kinds of pair twisting.

  • High speed
  • High productivity
  • High quality
  • Easy to operate
  • One stop station services


Φ500 Horizontal Cantilever Single Twisting Machine

Machine model

500 Horizontal high speed contilever twister

Core specification

AWG32-AWG20

Twisting out dia.

Φ4.0mm

Lay scope

15-60mm

Max rpm

MAX1000RPM

Power

Main engine:5HP/Pay-off:1/2HP

Core tension

Linear Guiways+Slide weight hommer type/Mechanical lever+Slide moving,with the tension test

Taping tension

Constant tension elect romagnetism brake wheel/Automatic tension trace instrument,taping tension keep constant from start to end

Take-up tension

Electrical tension,by itself,take-up tension keep constant from start to end

Traversing style

Shaft arrange take-up,no damage in product process,the size could be establishment the protection of line break

Brake of machine

The mian shaft of cantilever:Dish type brake/

Take-up volume:Electromagnetism brake

Pay-off type

Three power pay-off,adjust the speed by motor drievers,controled with main machine by linkage,and establishment the protection of link break

Shaft of take-up

300-500 general shaft

Shaft of pay-off

400-500 general shaft

Size of overall

LxWxH(4250x1200x1500)
