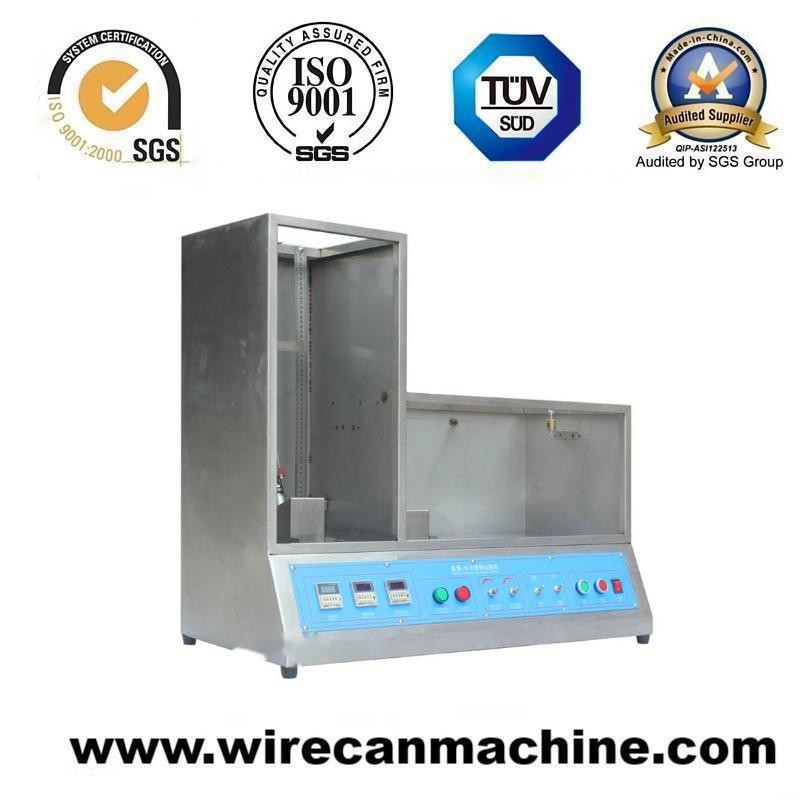

Analog Type UL-62 758 1581 Burning Test Machine




1.Test standards Burning Test Machine :analog type UL-62,758,1581

2.Application for Burning Test Machine :

The machine is testing the insulator or the covered fire. The test method is to hold the test material at the top of the flame, which is not exposed to the blow. It burns 15 seconds, extinguishes 15 seconds, and repeated 5 times, and examines the burn rate of the test. Type XL - 535, can set fire, interval number and test times and automatic operation. The machine consists of three parts: vertical box, horizontal box and control box.

specimen length 300,457mm
fuel methane, gas (self-prepared)
timer 2 groups,0~99 seconds
counter 0~9999×100 times
vertical volume 32×37×67cm
horizontal volume 62×32×35cm
Control chamber volume 34×24×33cm
weight 12kg+10kg+ 28kg
power 1∮,AC220V,1A
