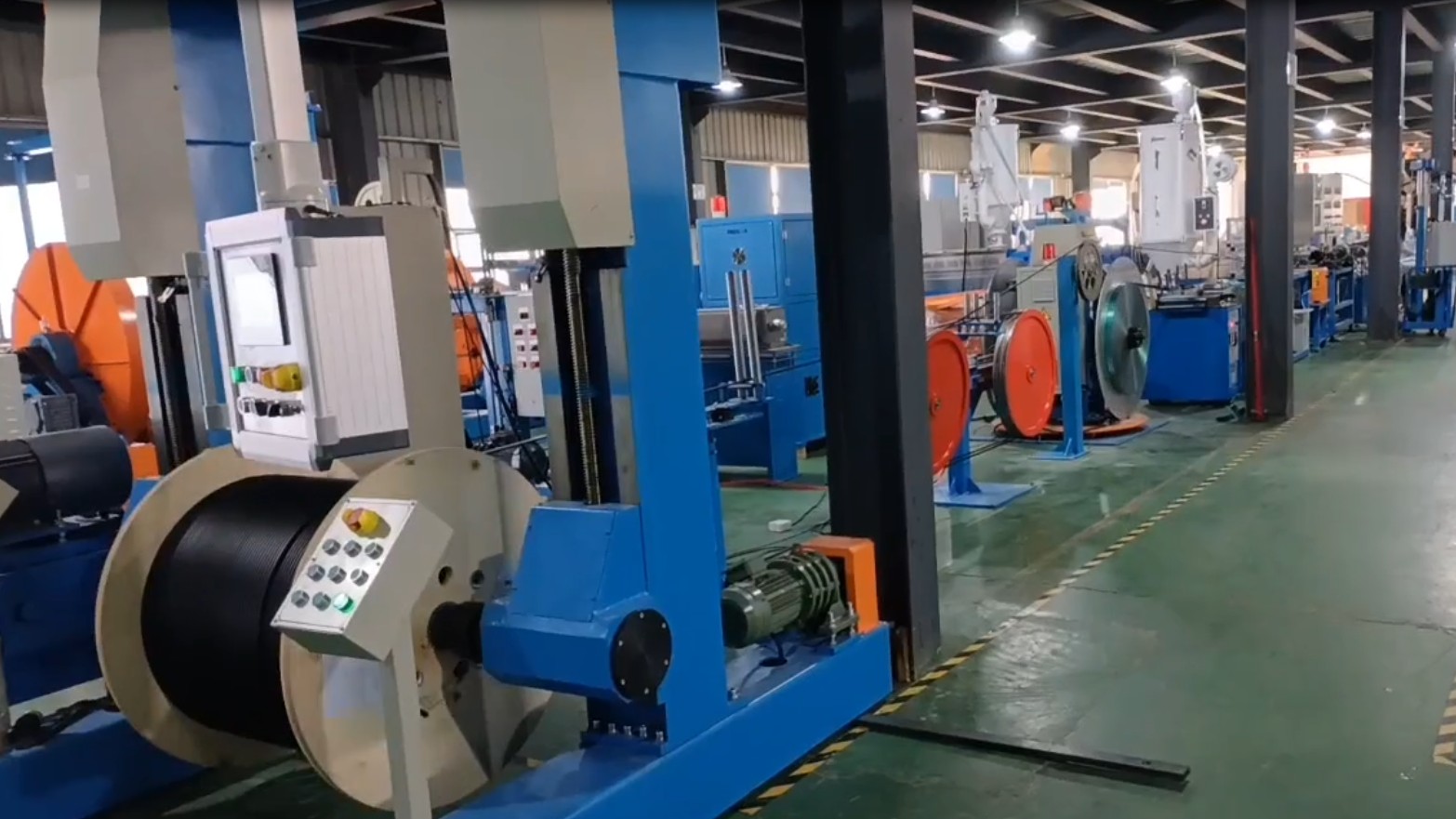

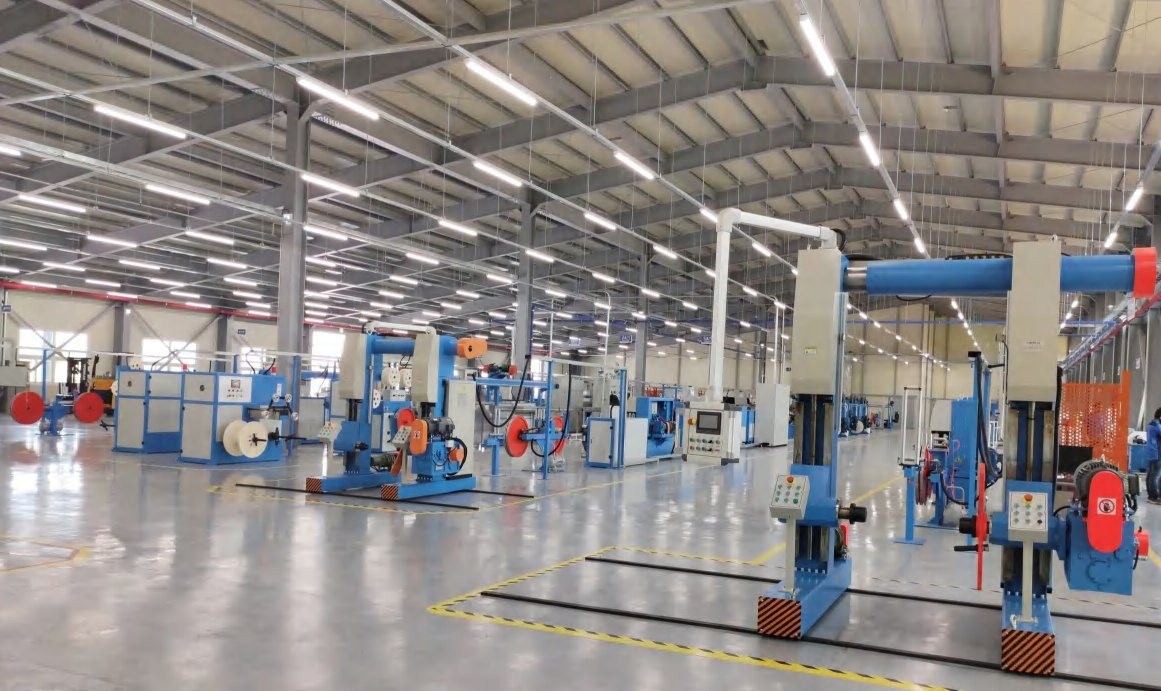

Cable Sheathing Machine Fiber Optic Cable Production Line





This is an outdoor fiber cable sheathing line, used to sheath different kinds of outdoor fiber optic cables (such as GYXTW, GYTA, GYTY 53 and so on ) with PE material.

144 Cores Loose Tube SZ Stranding Line For Stranded Aerial Fiber Optic Cable 0

A. The materials are PVC, LDPE, MDPE, HDPE, LSZH.

B. The temperature control is controlled by imported OMRON temperature control meter, and the temperature control is accurate.

C. The production line system can automatically adjust the outer diameter of the wire diameter through the diameter feedback function, and the wire diameter is stable.

D, International industrial computer technology control system  program with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.

E. The main control systems and components are international famous brands, and the production line has high stability and reliability.

bility.


structure speed Max.100m/min

Sheath outer diameter

6.0mm-35.0mm

cable core diameter

4.2mm-30mm

pay off reel sizes

800mm-1600mm

Take up reel sizes

800mm-1600mm

Additional loss

≤ 0.02db / km (sm fiber)

Power supply requirements

130KVA, AC380V ±10% 50HZ three-phase five-wire

Power consume

about 75 KW/h


Items Qty.

Cable core pay-off

1set

Φ800 tension unit

1set

PBT tubes pay-off

1set

Strengthen member pay-off

2set

Cable jelly filling device

1set

Water blocking tape pay off

1set

Dual wheels steel / aluminium tape pay-off

1set

Steel /aluminum tape accumulator

1set

On-line seam welding device (Steel & Aluminum tape)

1set

Metal tape (Steel-Aluminum tape) corrugating device

1set

Metal tape (Steel-Aluminum tape) longitudinal forming device

1set

Φ90 extruder

   1set

100KG Dryer machine and automatic hopper

   1set

IPC+PLC program electricity control cabinet

   1set

Stainless steel warm water trough and water tank

   1set

Single-layer U-type stainless steel cooling water trough(with dryer and silencer device)

   1set

Diameter laser gauge

   1set

Spark machine

   1set

Caterpillar type capstan machine

   1set

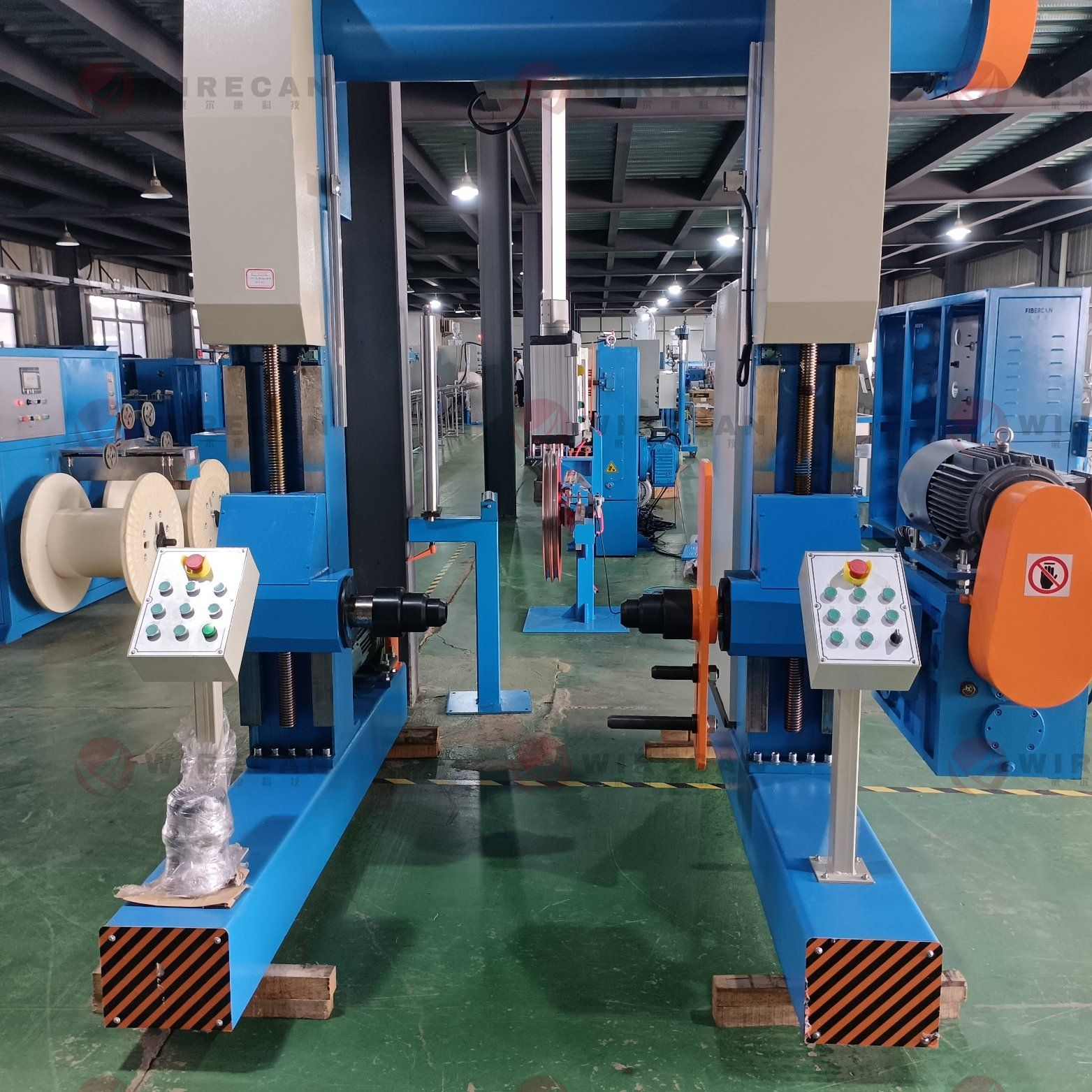

Take up tension unit

   1set

Take up machine

   1set
